Measure Arm Pads

Arm Pads:

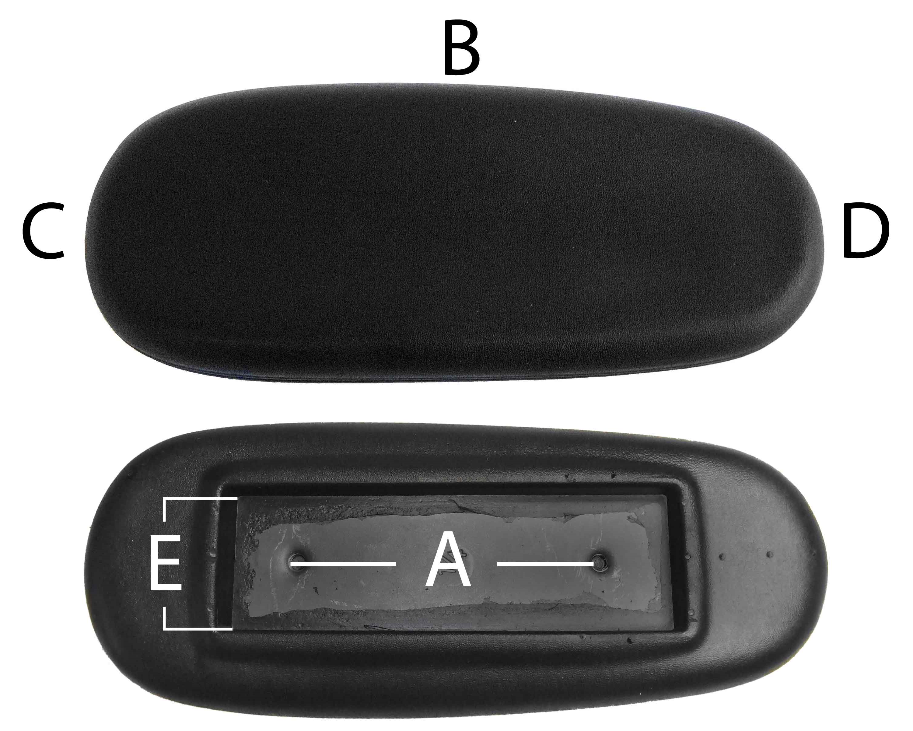

Please refer to the photo below to answer the following questions:

What is the distance between mounting holes (measurement A)?
What is the overall length (measurement B)?
What is the width at both ends (measurements C/D)?
What is the size of the cut out required (measurement E)?


Once you have determined the measurements, locate the correct item on the chart below:

  A B C/D E Length E Width Thickness
S1697-1 4" 9.5" 3" 5.4" 1.6" 1"
S2724-2 4" 10" 3"-4" 5.75" 1.75" 1"
S4624-2 4" 10" 3" 5.25" 2" Tapered
S5280 4" + 5.5" 9.25" 4.25" 6.5" 1.75" 1"
S5398  4" + 5.2" 11.5" 3" 7.75" 2.2" 1.5"

A few notes on measurements:

- The mounting holes are the most important part and this must be exact.
- The cutout can be +/-, as long as the top of the arm (where the pad is bolted on) is smaller than the replacement pad's cutout.
- The length and width can vary from the existing size completely, as much or as little as you prefer.

We also offer non-OEM Herman Miller only replacements as well as an arm pad designed for a 1" tube frame chair.



Loop Arms:

Or, if you're looking for a loop arm, use this guide:

What is the distance between mounting holes (measurement A & B)?
What are the diagonal measurements (C & D)?

The following measurements are less important - but may be useful to maintain aesthetics, if desired:

What is the overall length (measurement E)?
What is the overall height (measurement F)?





Once you have determined the measurements, locate the correct item on the chart below:

  A B C D E F
S3676 6" 3" 14.25" 7.75" 16.5" 12.25"
S5373 6.1875" 3.25" 13.25" 6.25" 17" 10.25"

Please note: We do not offer any upholstered parts, including the upholstered arm pads that rest on top of loop arms. If you're tired of the upholstered style chipping, use our un-upholstered style for longevity!

Also note: Our arms and arm pads do not include hardware as the length of the screw is based on the existing chair. If the length is wrong, it can be destructive to the parts or the chair itself.
